Type：

YJSV、YJLSV、YJSY、YJLSY、YJSV72、YJLSV72、YJSY73、YJLSY73、

 ZX-YJSV、ZX-YJLSV、WDZX-YJSY、WDZX-YJLSY、ZX-YJSV72、ZX-YJLSV72、WDZX-YJSY73、WDZX-YJLSY73

Main Specification：

Number of Cores：  1 Cores

Cross-section： 500～1200mm²

Rated Voltage：

21/35kV、26/35kV

Standard：

GB/T 12706、IEC60502

Products Introduction：

Apply to: Rated Voltage 21/35kV, 26/35kV, high voltage power transmission and distribution system The maximum long-term operating temp. of cable conductor is 90℃. The temp.of cable should not exceed 250℃ when short-circuit(max.duration shall not exceed 5s).Minimum operating temp.of cable is -15℃. Remarks: The “X” in ZX or WDZX means A, B or C, which represents the grade of flame-retardant is A, B, or C.

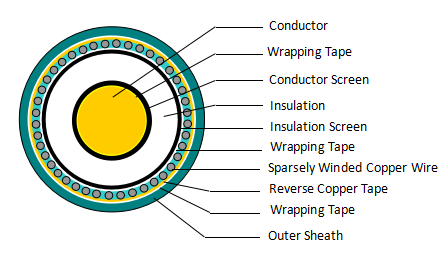

  Cable Structure Drawing：
