Type：

YJV、YJLV、YJV62、YJLV62、YJV72、YJLV72 、ZX-YJV、ZX-YJLV、WDZX-YJY、WDZX-YJLY、ZX-YJV72、 ZX-YJLV72、WDZX-YJY73、 WDZX-YJLY 73

Main Specification：

Number of Cores：  1 Cores

Cross-section： 25～1200mm²

Rated Voltage：

3.6/6～26/35kV

Standard：

GB/T 12706、IEC60502

Products Introduction：

Apply to: Rated Voltage 3.6/6～26/35kV, high voltage power transmission and distribution system The maximum long-term operating temp. of cable conductor is 90℃. The temp.of cable should not exceed 250℃ when short-circuit(max.duration shall not exceed 5s).Minimum operating temp.of cable is -15℃. Remarks: The “X” in ZX or WDZX means A, B or C, which represents the grade of flame-retardant is A, B, or C.

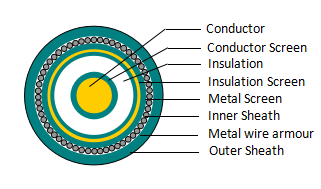

  Cable Structure Drawing：
